Detailed explanation of the manufacturing process for drug packaging, cosmetic packaging, health care products packaging, and consumer packaging folding paper box and gift boxes.

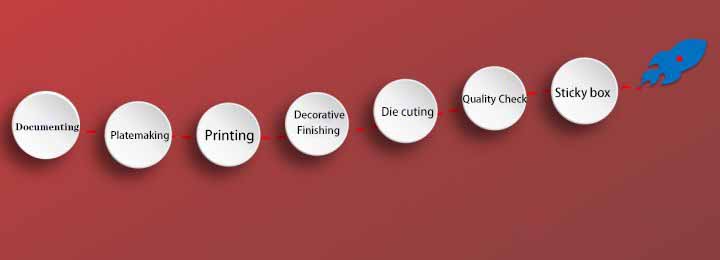

China printing chocolate box factory Folding paper box manufacturing process:

1

artwork /graphic Process:

The paper box, chocolate box,etc material, structure, size, color, process, and other information are determined by the documents that are provided by the customer to the company. There should be a consistency between the information given here and the actual production of the document, and pre-press documents should be designed according to the specifications given by the customer.


Printing File:

By scanning and engraving the image data on the computer, the CTP plate making machine scans and engraves the image information, and then by developing the image, the harmonic image of the image is formed on the developing machine. It's at this point that the image information is read back onto the printing plate for direct use by the offset printing machine, after it has been developed by the development machine.

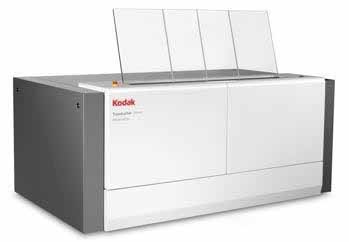

CTP制版机

Computer to Plate

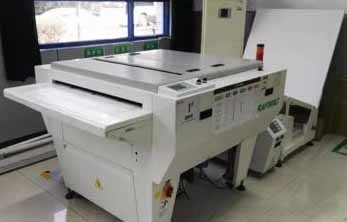

显影机

Printing production:

The text and image information on the CTP printing plate is mutually repelled by the ink and water on the printing press, and the graphic information is transferred to the blanket, and through a certain pressure, the ink on the blanket is transferred to the paper to reproduce it (offset printing process).

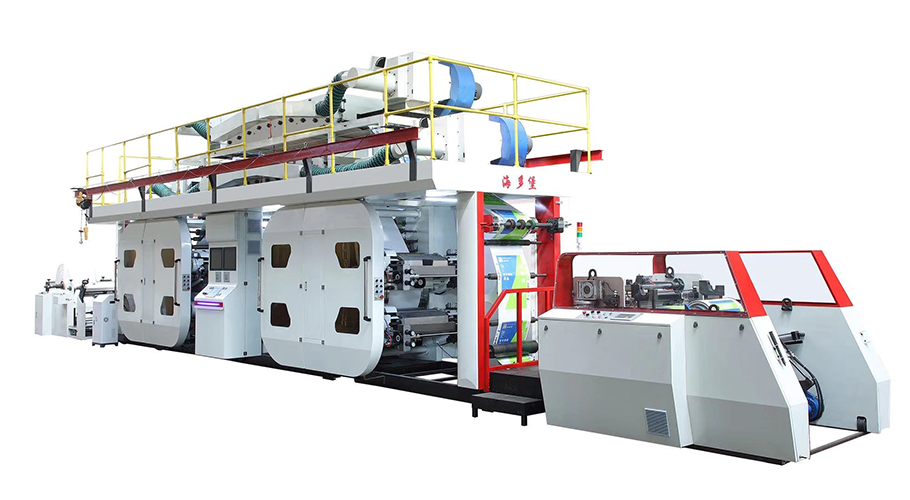

印刷机

Printing Press

Surface finishing

Glazing process, reverse glazing process, lamination process, laser embossing transfer,hot stamping process, ordinary, multi-layer embossing, braille embossing, silk screen printing process, etc.


Die cutting

As a result of the special-purpose paper or cardboard being pressed into the paper or cardboard, the paper or cardboard can be bent according to certain specifications that have been established.


Quality inspection

In order to ensure high-quality printing, the inspection machine uses image visual inspection technology to inspect high-speed moving printed matter in real time and rejects products that do not meet the quality standards.


Assemble box

After the paper or cardboard has been formed by indentation and die-cutting, glue is applied to the position that needs to be glued, according to the requirements of the carton, and it is pre-folded and folded to form, also known as gluing or pasting.

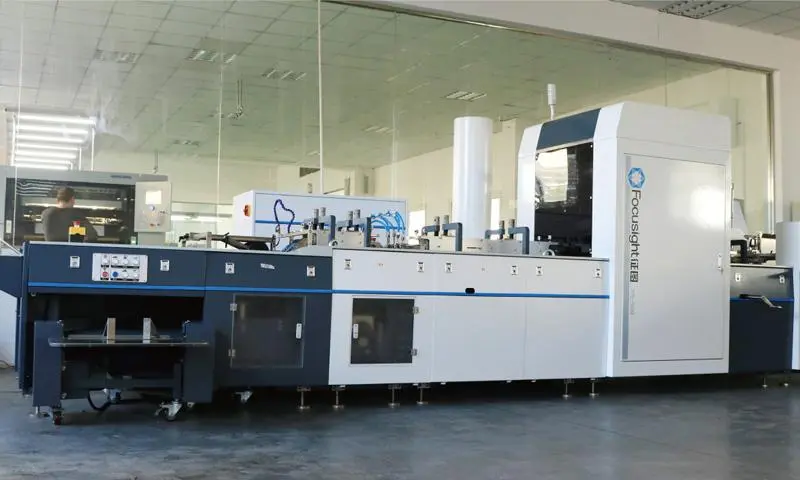

检品机

Check Product Machine

Gift box production process:



Grey board die-cutting

Before the gray board card of the gift box is formed, the gray board must be removed in a V-shape, so that after the gray board card is bent, the outside is straight and the inside is square, the edges and corners are clear, and the four corners are precisely matched.


Assembly process

It's a necessary process in the gift box process. According to the requirements of different products, the facial paper is glued through an automatic box-packing machine, and the facial paper and the slotted gray board are tightly pasted together, so that they can be combined into one.

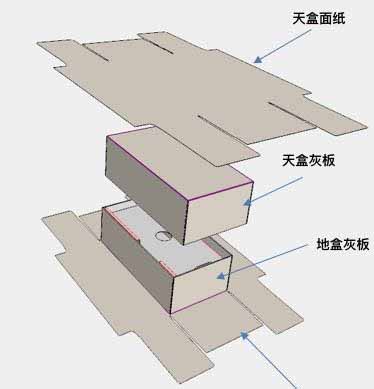

GIFT BOX

GIFT BOX


TOPICS:gift box,folding paper box,cosmetic packaging
